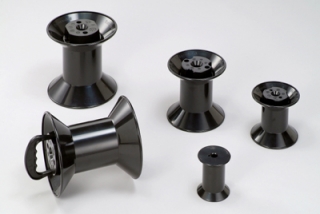

Biconical
IEC type
JIS type
Cylindrical
DIN type
NP type & P type I
B type & P type II
YS type
PL type
NEMA type I
Welding Type
Optic Fibre Cable Type
Wardwell type
Disc Type
Spool for 3D Printer Filament
Tapered
PT type I
PT type II
PT type III
NEMA type II
[ IEC type ]
(Total Pages: 1 ) Page :
1
Item
No
Spool/Reel
Flange
Diameter
D
mm
Barrel
Diameter
d
mm
Bore
Diameter
d3
mm
Traverse
Length
L1
mm
Overall
Length
L2
mm
Spool
Weight
W
g
Flange
Angle
α
degrees
Material
Remark
1
76/45
63.4
44.4
16
60
86.3
70
45
ABS / HIPS
same as JIS type PL-300S
2
79/45
80
55
16
70
100
85
45
ABS
3
99/45R
100
56
16
49
100
100
45
ABS
4
124/45R
125
71
16
65
125
160
45
ABS
5
159/45R
160
90
22
85
160
315
45
ABS
6
199/45R
200
112
22
106
200
575
45
ABS
