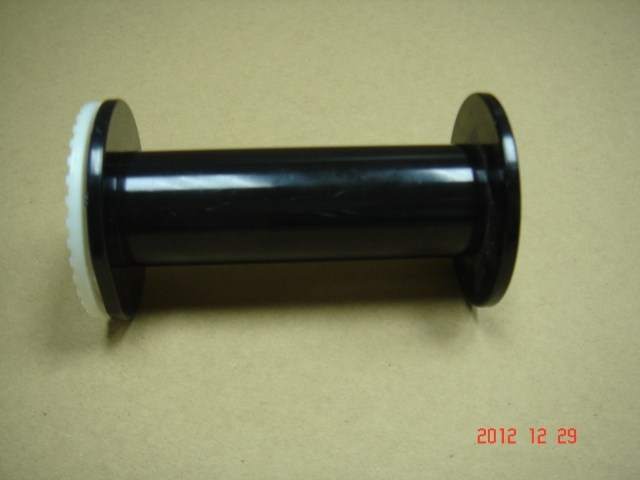

[ Wardwell type ]
(Total Pages: 1 )   Page : 1
Item
No		Spool/ReelFlange
Diameter
D
inch		Barrel
Diameter
d
inch		Overall
Length
L
inch		Traverse
Length
l
inch		Bore
Diameter
h1/h2
inch		Flange
Thickness
t1/t2
inch		Spool
Weight
W
lb		MaterialRemark
1 CP162.61.43.22.70.70.2/0.40.2ABS　
2 CP242.61.44.64.10.70.2/0.40.2ABS　
　
