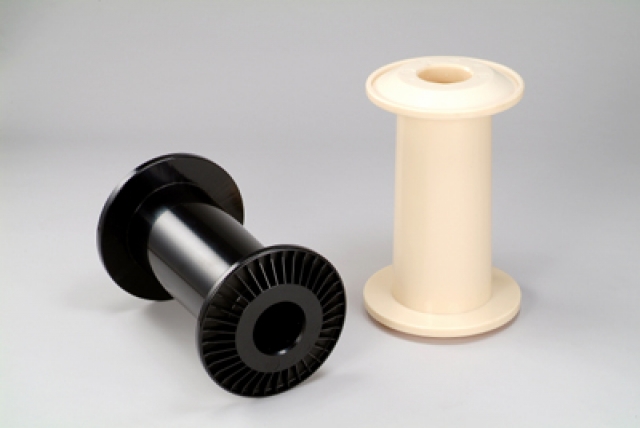

[ PT type III ]
(Total Pages: 1 )   Page : 1
Item
No		Spool/ReelTop Flange
Diameter
D1
mm		Bottom
Flange
Diameter
D2
mm		Barrel
Top
Diameter
d1
mm		Barrel
Bottom
Diameter
d2
mm		Traverse
Length
L1
mm		Overall
Length
L2
mm		Bore
Diameter
h1/h2
mm		Flange
Thickness
t1/t2
mm		Spool
Weight
W
g		MaterialRemark
1 PT-90 (A)300315180200425501100382500ABS　
2 PT-90 (B)300315180200425501100383900ABS　
　
