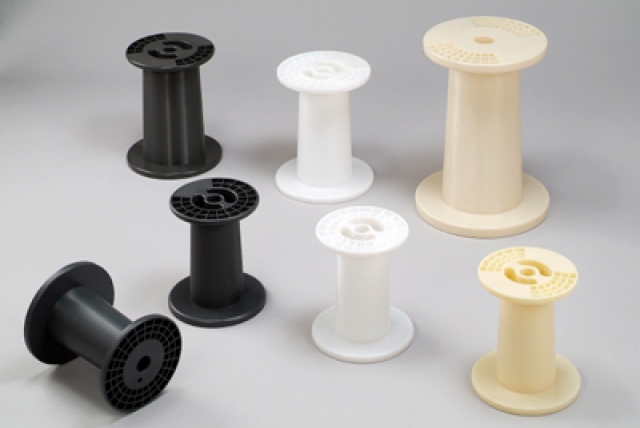

[ PT type II ]
(Total Pages: 1 ) Page :
1
Item
No
Spool/Reel
Top Flange
Diameter
D1
mm
Bottom
Flange
Diameter
D2
mm
Barrel
Top
Diameter
d1
mm
Barrel
Bottom
Diameter
d2
mm
Traverse
Length
L1
mm
Overall
Length
L2
mm
Bore
Diameter
h1/h2
mm
Flange
Thickness
t1/t2
mm
Spool
Weight
W
g
Material
Remark
1
PT-15 (A)
180
200
96
110
200
230
30
15
550
HIPS
2
PT-15 (B)
180
200
96
110
200
230
30
15
740
ABS / HIPS
3
PT-15E
180
200
96
110
200
230
30/22
15
550
HIPS
4
PT-15 (F)
180
200
96
110
200
230
30
15
560
HIPS
5
PT-15 NEW
180
200
96
110
200
230
30
15
740
HIPS
6
PT-15HT
180
200
96
110
200
230
30
15
740
ABS / HIPS
7
PT-20 (A)
210
230
132
150
250
280
30
15
900
ABS
8
PT-20 (B)
210
230
132
150
250
280
30
15
870
HIPS
9
PT-25 (A)
215
230
110
130
250
280
30
15
1000
ABS
10
PT-25 (B)
215
230
110
130
250
280
30
15
1000
HIPS
11
PT-25 (C)
215
230
110
130
250
280
30
15
780
ABS / HIPS
12
PT-60
270
300
150
180
350
400
45
25
2400
ABS
