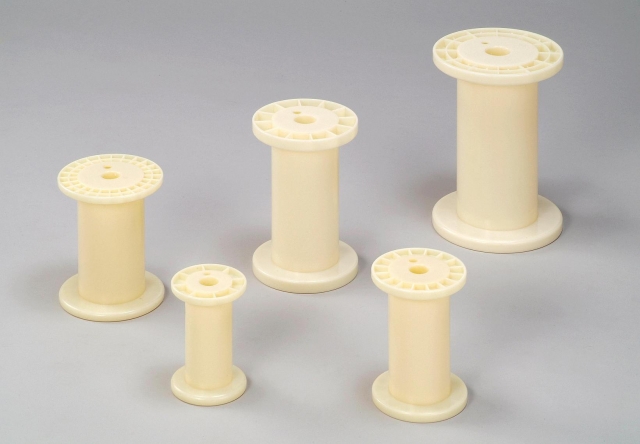

[ PL type ]
(Total Pages: 1 ) Page :
1
Item
No
Spool/Reel
Flange
Diameter
D
mm
Barrel
Diameter
d
mm
Overall
Length
L
mm
Traverse
Length
l
mm
Bore
Diameter
h1/h2
mm
Flange
Thickness
t1/t2
mm
Spool
Weight
W
g
Material
Remark
1
PL-1
80
50
120
100
20
10
80
ABS / HIPS
2
PL-2
100
65
145
125
20
10
160
ABS / HIPS
3
PL-4
125
80
190
160
26
15
240
ABS / HIPS
4
PL-8
160
100
230
200
30
15
470
ABS / HIPS
5
PL-3H(A)
120
76
150
130
20
10
195
ABS
6
PL-3H(B)
120
76
150
130
20
10
230
HIPS
