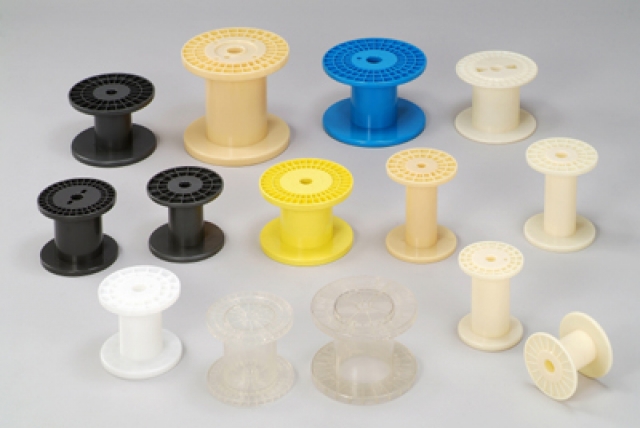

[ NP type & P type I ]
(Total Pages: 1 ) Page :
1
Item
No
Spool/Reel
Flange
Diameter
D
mm
Barrel
Diameter
d
mm
Overall
Length
L
mm
Traverse
Length
l
mm
Bore
Diameter
h1/h2
mm
Flange
Thickness
t1/t2
mm
Spool
Weight
W
g
Material
Remark
1
NP-2
100
60
130
110
20
10
130
ABS
2
NP-13
202
117
188
153
32
17.5
850
ABS
3
NS-5
120
54
150
130
15
10
195
ABS
4
P-1F
100
50
84
70
20
7
105
ABS
5
P-3A
124
64.5
117.5
93.5
22
12
130
HIPS
6
P-3C
120
54
150
130
20
10
195
ABS
7
P-3R
130
60
110
90
20
10
170
ABS / HIPS
8
P-3RL
130
80
110
90
20
10
230
ABS
9
P-3RT
130
80
110
90
20
10
220
ABS / HIPS
10
P-5A
155
90
119
107
22.5
6
250
HIPS
11
P-5RL
160
90
114
90
20
12
300
ABS / HIPS
12
P-5RT
160
90
114
90
20
12
305
ABS / HIPS
13
P-5RM
160
100
114
90
20
12
300
ABS / HIPS
